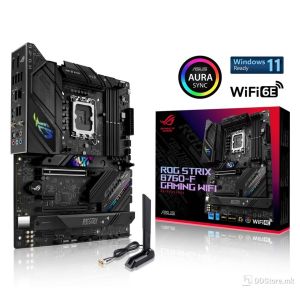

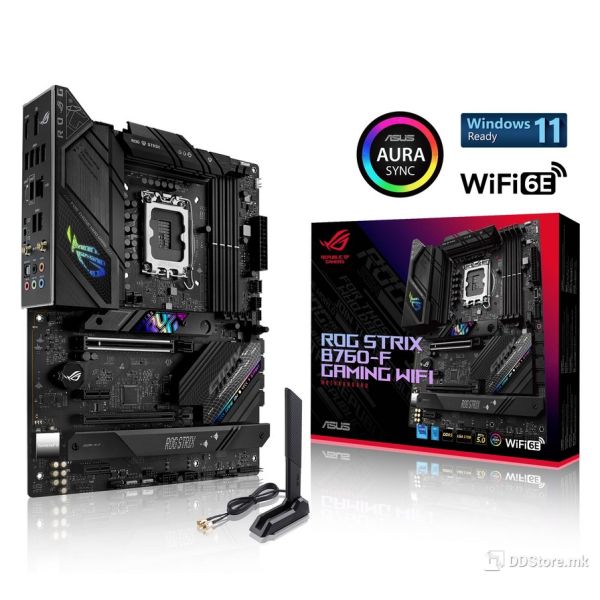

MB Asus ROG STRIX B760-F GAMING WIFI

Basic features - Processor socket (socket): Intel 1700 Chipset: Intel B760 Memory - Memory type: DDR5 Memory slots: 4 Supported memories: 4.800Mhz,5.000Mhz,5.200Mhz,5.400MHz,5.600MHz,5.800MHz (O.C.),6.000MHz (O.C.),6.200MHz (O.C.),6.400MHz (O.C.),6.800MHz (O.C.),7.000MHz (O.C.),7.800MHz (O.C.) Maximum total memory: 192GB Other features: OptiMem II,Support for Extreme Memory Profile (XMP),Support for non-ECC UDIMM memory Slots - PCI Express x16 slot: 1x PCI Express 3.0 (x4 mode), 1x PCI Express 5.0 (x16 mode) PCI Express x1 slot: 2x PCI Express 3.0 Other slots: 3x M.2 slot, 4x SATA 6.0Gb/s ports Storage interface - SATA ports (total): 4 SATA ports: SATA III 6Gbps Number of M.2 slots: 3 RAID: RAID 0,RAID 1,RAID 10,RAID 5 Network - Wired network (LAN): 2.5GBase-T (Gigabit) Model: Intel Wi-Fi: Yes Wi-Fi standard: Wi-Fi 6E (802.11ax) Bluetooth: Yes Bluetooth version: 5.3 Audio - Number of channels: 8 (7.1) Model: ROG SupremeFX Note: Front Panel Jack-retasking, Jack-detection, Multi-streaming, Premium audio capacitors, Savitech SV3H712 AMP, SupremeFX Shielding Connections on the rear panel - DisplayPort number ports: 1 Number of HDMI ports: 1 Total USB ports: 8 Total USB-C ports: 1 USB-A ports: 1x USB 10Gbps (3.2 Gen 2), 6x USB 5Gbps (3.2 Gen 1) USB-C ports: 1x USB 20Gbps (3.2 Gen 2x2) RJ-45 (LAN): 1 Audio: 5x 3.5mm Other ports: 1 x optical S/PDIF,Clear CMOS button(s),Clear CMOS switch,USB BIOS Flashback Button(s) Internal connectors - Power connectors: 1 x 24 pin Main Power connector,1 x 8-pin ATX 12V power connector,1x 4 pin 12V Power Connector USB-A: 1 x support for 2 USB 5Gbps ports, 1 x support for 4 USB 2.0 ports USB-C: 1 x support for 1 USB 10Gbps port Audio: 1x Front panel audio Other connections: 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x 4-pin AIO Pump header, 1 x 4-pin Chassis Fan header, 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x AURA RGB header, 1 x Thermal Sensor header, 1 x Thunderbolt header(s), 2 x SATA 6Gb/s, 3 x Addressable Gen 2 headers, 3x M.2 Socket 3 Note: Additional brackets or connectors on the case are required to use certain internal connectors Other features - Supported technologies: ASUS CrashFree BIOS 3,ASUS EZ Flash 3,AURA Creator,Aura RGB header,AURA Sync,BIOS FlashBack button,BIOS FlashBack LED,DIGI+VRM,DTS Sound Unbound,Extreme Engine Digi+,Fan Xpert 4,GameFirst VI,PC Cleaner,ProCool,Q-DIMM,Q-LED Core,Q-Slot,ROG CPU-Z,SafeDIMM,SafeSlot,Sonic Radar III,Sonic Studio III,UEFI Bios,VRM heatsink design Physical characteristics - Format: ATX Dimensions: 305mm x 244mm Packaging: Full box retail Condition: Unused Claim period - Claim period: 36 months
